High Quality ASME Standard Cryogenic Storage Tank
Product Description
Cryogenic liquid storage tanks is a series of products of producing first, second , third types of pressure vessel ,the products strictly in accordance with the GB150 "pressure vessels", GB18442-2011 stationary vacuum insulation cryogenic pressure vessel, and the fixed safety technicalsupervision type of pressure vessel to design,manufacture,inspect and accept.
Cryogenic liquid storage tanks is for double wall, vertical (horizontal) structure, adopt theuse of vacuum powder adiabatic, with the advantage of compact structure , low issuance date,small footprint,centralized control, safe,reliable, easy operation and maintenance.
Product Parameters
| Inner Vessel Working Pressure(MPa) | Weight(Kg) | Outer Size(L*W*H)(mm) | Medium | Insulation Type | Design standard |
| 1.6 | 7700 | 6058*2438*2591 | LOXLArLIN | High vacuum multi-layer insulation | GB/ASME |
| 2.2 | 9200 | 6058*2438*2591 | LOXLArLINLCO2 |
| 2.2 | 9750 | 6058*2438*2591 | LCO2 |
| 2.2 | 8000 | 6058*2438*2591 | LPG |
| 1.8 | 13000 | 12192*2438*2591 |
Application Fields
These tanks can be widely used in various industries, such as machine building, gas, chemical engineering, synthetic fiber, medical, food industry, mining, electronic, metallurgy and engineering, etc.
Product Features
1. Inner vessel:
The stainless steel material which is suitable for cryogenic working condition is adopted. The structure design is optimized and reasonable.
2. Inner pipeline:
The flexible design and inspection is to ensure the quality and appearance of the products. Unique energy-saving pipeline design can ensure the safe use of the product in any medium.
3. Outer vessel:
Using Q345R materials, it is equipped with special stainless steel transport support, and lateral lifting lugs to transport easily and reduce the installation cost greatly.
4. Vacuum insulation:
We use unique process, Glass fiber thermal insulation paper: high cost, small size, good thermal insulation effect!high vacuum multilayer insulation, so that our products have excellent vacuum insulation performance.
5. Valve piping system:
① The structure is compact. The pipe length is less than that of the conventional tank, and the heat loss of the external pipe is effectively reduced.
② The combination valve reduces the number of welded joints to improve safety and reliability, and reduce maintenance costs.
③ With all stainless steel piping design, it provides reliable performance for long service.
6. Safety:
The storage tank is equipped with a double safety discharge system with two safety valves and two bursting discs, which enables one of them to be isolated while the other is maintained or under repair.
7. Cleaning standards:
All parts in contact with the medium shall be cleaned in strict accordance with the requirements for storing liquid oxygen.
ABOUT US
Our company is a professional manufactory of large storage tanks, it contains the design, provided steel material and overseas installation. Professional engineers and construction teams, all the tanks are made in accordance with international standards.
The large storage tanks of various specifications and models can be made. We can choose different types and different materials storage tanks according to the properties of the materials.
If you want to know about certain products, you can send an email to info@gneeheatex.com.
Product Tags:
|
|

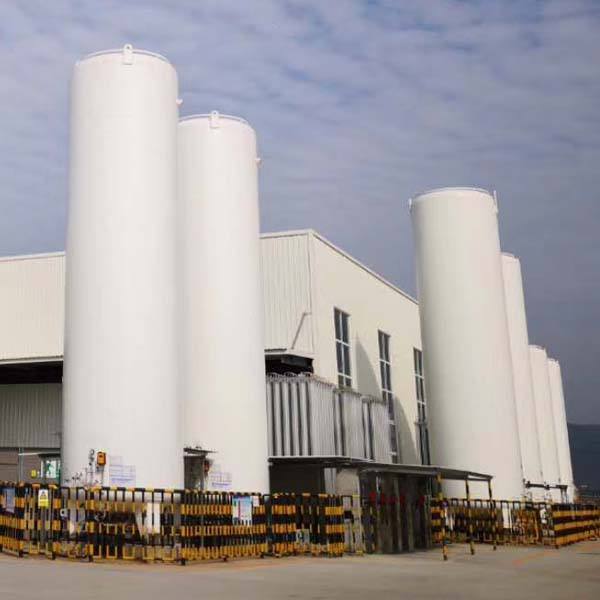

High Quality ASME Standard Cryogenic Storage Tank Images
|
