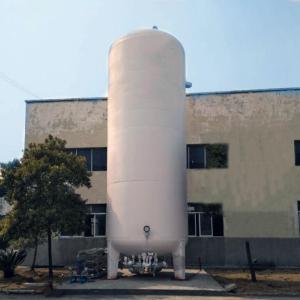

ASME Industrial Stainless Steel Liquid l Cryogenic Storage Tank
Description of cryogenic tank
cryogenic liquid storage tank is for double wall, the inner material adopted S30408 stainless steel,the outer material useing Q245R,carbon steel. It conclude vertical and horizontal structure, adopt the use of vacuum powder adiabatic, with the advantage of compact structure , low issuance date,small footprint,centralized control, safe,reliable, easy operation and maintenance.
Product Parameters
| Gross Volume |
| | :L | 1010 | 1010 | 2107 | 2107 | 3031 | 3031 | 5168 | 5168 |
| :gal | 267 | 267 | 557 | 557 | 801 | 801 | 1365 | 1365 |
| Net Volume |
| | :L | 960 | 929 | 2002 | 1938 | 2879 | 2789 | 4910 | 4755 |
| :gal | 253 | 245 | 529 | 512 | 761 | 737 | 1297 | 1256 |
| MAWP |
| | :MPa | 2.4 | 3.5 | 1.6 | 3.5 | 1.6 | 3.5 | 1.6 | 3.5 |
| :psi | 350 | 500 | 230 | 500 | 230 | 500 | 230 | 500 |
| Max. Pre-set Operating Pressure |
| | :MPa | 2 | 3.1 | 1 | 3.1 | 1 | 3.1 | 1 | 3.1 |
| :psi | 300 | 450 | 150 | 450 | 150 | 450 | 150 | 450 |
| Design Specification |
| | ASME | ASME | ASME | ASME | ASME | ASME | ASME | ASME |
| Gaseous Volume |
| Oxygen | :Nm3 | 766 | 742 | 1598 | 1548 | 2299 | 2226 | 3920 | 3796 |
| :SCF | 27053 | 26199 | 56437 | 54655 | 81187 | 78623 | 138427 | 134056 |
| Nitrogen | :Nm3 | 617 | 597 | 1287 | 1246 | 1851 | 1793 | 3157 | 3057 |
| :SCF | 21788 | 21100 | 45452 | 44017 | 65385 | 63320 | 111484 | 107963 |
| Argon | :Nm3 | 749 | 726 | 1563 | 1514 | 2249 | 2178 | 3834 | 3713 |
| :SCF | 26464 | 25628 | 55207 | 53464 | 79417 | 76910 | 135411 | 131134 |
| NER(Nitrogen) |
| | :%/Date | 0.7 | 0.7 | 0.6 | 0.6 | 0.5 | 0.5 | 0.4 | 0.4 |
| Gas Delivery Rate |
| | :Nm3/H | 25 | 40 | 75 | 75 | 75 | 75 | 100 | 100 |
| :SCFH | 883 | 1413 | 2649 | 2649 | 2649 | 2649 | 3532 | 3532 |
| Dimensions |
| Pallet Size | :mm | 1250*1250 | 1250*1250 | 1500*1500 | 1500*1500 | 1700*1700 | 1700*1700 | 2100*2100 | 2100*2100 |
| :inch | 49.21*49.21 | 49.21*49.21 | 59.05*59.05 | 59.05*59.05 | 66.92*66.92 | 66.92*66.92 | 82.67*82.67 | 82.67*82.67 |
| Tank Diameter | :mm | 1058 | 1058 | 1308 | 1308 | 1508 | 1508 | 1910 | 1910 |
| :inch | 41.65 | 41.65 | 51.50 | 51.50 | 59.37 | 59.37 | 75.20 | 75.20 |
| Overall Height | :mm | 2225 | 2225 | 3060 | 3060 | 3160 | 3160 | 3150 | 3150 |
| :inch | 87.60 | 87.60 | 120.47 | 120.47 | 124.41 | 124.41 | 124.02 | 124.02 |
|
Tare Weight
| :kg | 750 | 800 | 1170 | 1490 | 1570 | 2000 | 2613 | 3165 |
| :lbs | 1653 | 1764 | 2579 | 3285 | 3461 | 4409 | 5761 | 6978 |
NO.1:Stainless steel shell, spiral polished, beautiful and corrosion-resistant.
NO.2:With bottom filling and top filling, fast filling speed and controllable pressure of storage tank.
NO.3:Forced pressurization mode, fast pressurization speed.
NO.4:Extemal vaporizer with high gas supply flow.
NO.5:With gas outlet and liquid outlet for
NO.6:Stainless steel pressure gauge with double unit scale (MPa /psi).
NO.7:Double safety system, rupture disc +safety valve, to ensure the safety of the vessel.
