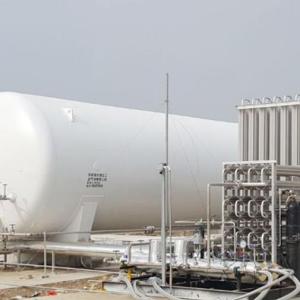

3000L Cryogenic Storage Tank ASME Certificate
Product Description
Cryogenic liquid storage tanks is for double wall, vertical (horizontal)structure, adopt vacuum powder insulation, with the advantage of compact structure , low daily evaporation rate, small footprint, centralized control,safe, reliable, easy operation and maintenance.
♦LNG tank is a professional product for storing liquefied natural gas,which is widely used in energy, metallurgy, chemical, food, aquaculture and other fields.
Product Parameters
| Water capacity | Working
pressure(MPA) | Extemal
dimension(mm) | Net
weight(kg) | Full-load weight(kg) |
| LOX | LIN | LAr |
| 5m3 | 1 | 2216*4405 | 4130 | 9830 | 8180 | 11130 |
| 5m3 | 1.75 | 2216*4405 | 4400 | 10100 | 8450 | 11400 |
| 10m3 | 1 | 2216*7098 | 6250 | 17920 | 14620 | 20520 |
| 10m3 | 1.75 | 2216*7098 | 6861 | 18261 | 14961 | 20861 |
| 15m3 | 0.8 | 2616*6520 | 7380 | 24480 | 22530 | 28380 |
| 15m3 | 1.75 | 2616*6520 | 8501 | 25601 | 20651 | 29501 |
| 20m3 | 0.8 | 2616*8030 | 8925 | 31725 | 25125 | 36925 |
| 20m3 | 1.75 | 2616*8030 | 10378 | 33178 | 26578 | 38378 |
| 30m3 | 0.8 | 2616*11070 | 12166 | 46366 | 36466 | 54166 |
| 30m3 | 1.75 | 2616*11070 | 14300 | 48500 | 38600 | 56300 |
| 50m3 | 0.8 | 3020*12685 | 19494 | 76494 | 59994 | 89494 |
| 50m3 | 1.75 | 3020*12685 | 23050 | 80050 | 63550 | 93050 |
| 100m3 | 0.8 | 3520*17585 | 33800 | 147800 | 114800 | 174800 |
| 100m3 | 1.6 | 3520*17585 | 40550 | 154550 | 121550 | 181550 |
1. Storage medium: LO2, LN2, LAr, LNG or LCO2
2. Working pressure: 0.5MPa ~ 3.5MPa, or as requrested.
3. Geometric capacity: 1000L, 2000L,3000L,5000L, 7000L, etc
4. Manufacturing standards: ISO9001,ASME,CE,etc
Features
(1)Pallet skip Design: Centralized gas supply system on pallets skip: collect Storage tank, PBC, Vaporizer, and pipelines. Designcompact.
(2)Quality Well: High vacuum multi-layer insulation and well designed structure, and no liquid loss.
(3)Easy installation: can put anywhere you want on working site.
(4)Easy transportation: Can lift hooks, or by forklift on movable base.
(5)Easy Operation: All the data is showed on instrument, and can be adjusted according to actual situaton of gas pressure
regulation.
(6) Easy Maintenace: CGA Connection, which is convenient to assemble and disassemble.
(7) Intelligent Equipment: taking remote liquid level and pressure supervision, can send tank liquid data to your phone.
